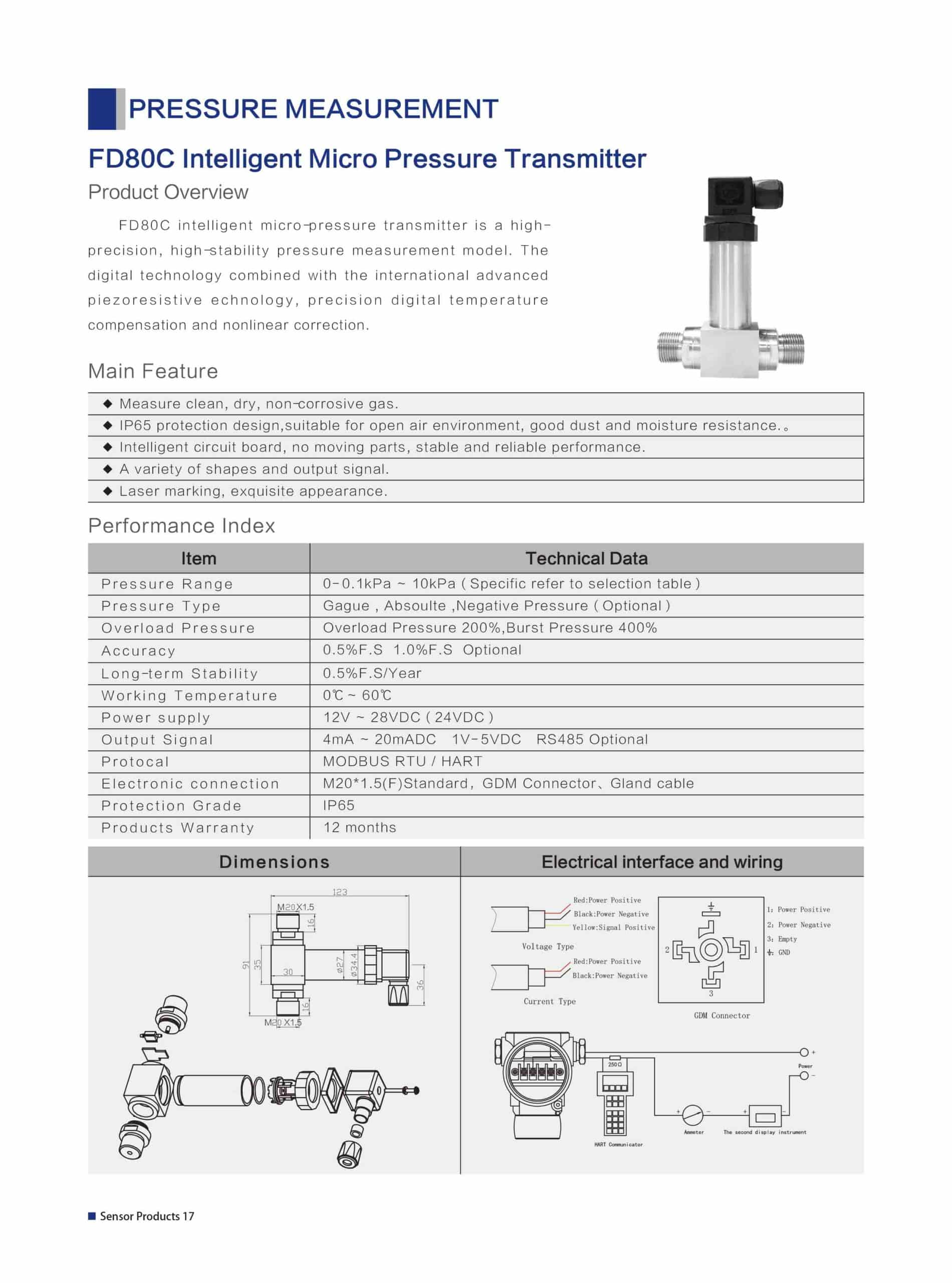

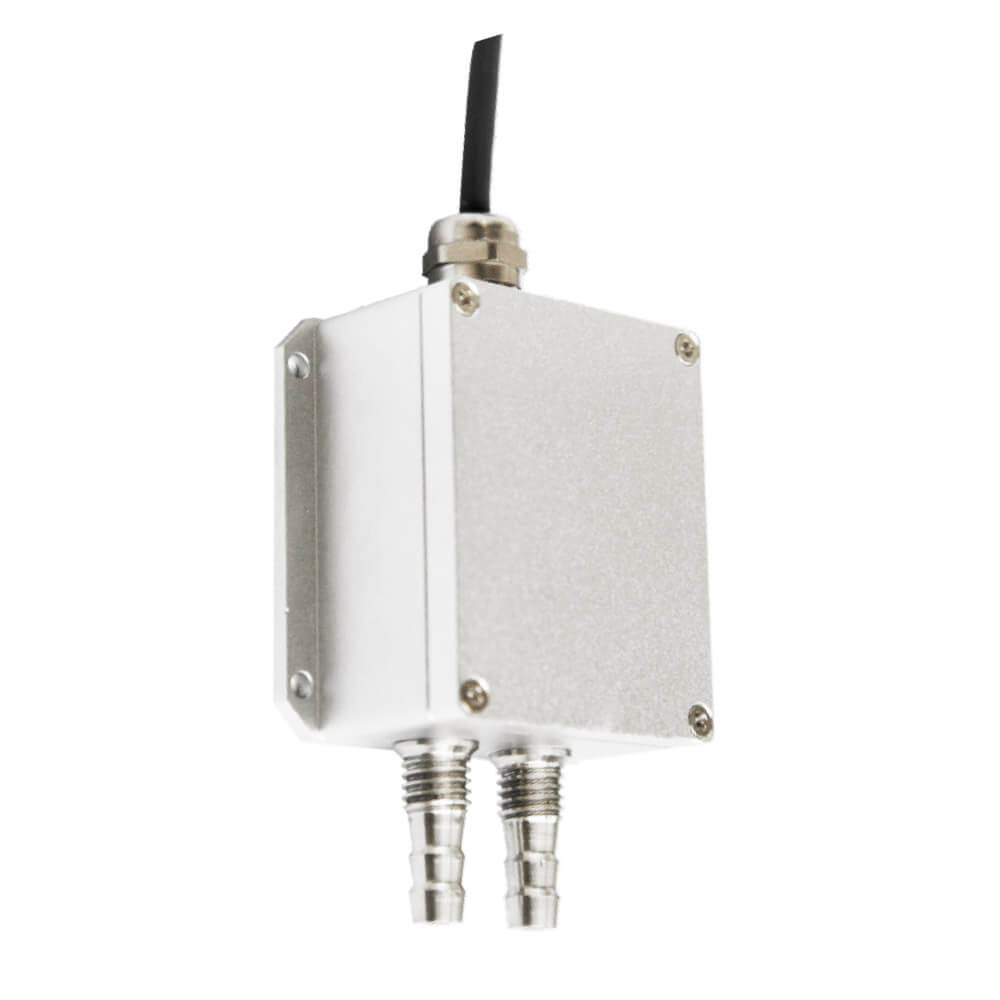

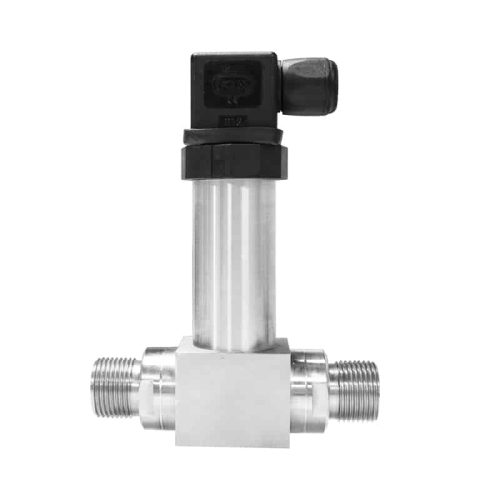

FD80C Micro Differential Pressure Transmitter

FD80C Micro Differential Pressure Transmitter

Product Feature
  • It can measure clean,dry and non-corrosive gas
  • Various structures and output signal are optional
  • IP65 protection design,suitable for field,open air and good dust and moisture resistance
  • Laser marking nameplate,the appearance is exquisite and meticulous
  • Digital circuit design,no moving parts, stable and reliable performance

Measuring Range0-0.1kPa~10kPa(See model selection table)
Pressure TypeGauge;Absolute;Negative;Differential pressure
Overload/Burst pressure200% F.S/400% F.S
Accuracy0.5%F.S 1.0%F.S
Long Stability0.5%F.S/year
Working Temperature0℃ ~60℃
Power Supply12V~28VDC(Recommended 24VDC)
Output Signal4mA~20mADC,1V-5VDC,RS485 Optional
Communication ProtocolMODBUS RTU,HART
Electrical ConnectionM20*1.5(F) Cable entry,GDM Hirschmann,Direct lead
Protection LevelIP65
Warranty period12 months

FD80C differential pressure transmitter/transducer is piezoresistive pressure sensor with Imported high precision and high stability chip.Products using special surface treatment technology and application isolation technology,sensor is accurately digital corrected,stable and reliable.
