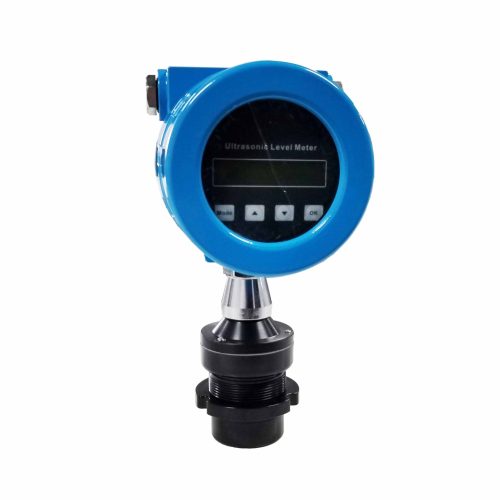

FD86N Ultrasonic Level Meter

FD86N Ultrasonic Level Meter

Product Feature
  • Two-line wiring,the sound waves are strong, the measurement is stable and reliable
  • Parameter settings can be performed through the instrument button
  • Optional Hart output function, which meets the Hart 7.0 standard
  • With a large LCD display window for easy debugging and observation
  • Overvoltage and overcurrent protection,lightning protection
  • Intelligent signal processing technology to ensure adapts to various working conditions
  • All plastic probe,acid and alkali resistance,adapt to harsh environment

Measuring Range0- 1m~200mH2O(See selection table)
Accuracy0.5%F.S
Long Stability0.2%F.S/year
Display Resolution1mm
Pressure range– 0.1MPa~0.1MPa
Power220VAC 24VDC(Optional)
Protection GradeIP67
Installation TypeThread, flange, bracket (optional)

FD86-N ultrasonic liquid level meter is a non-contact, high reliability,Cost-effective,easy to install and maintained liquid level measurement instrument. It is a low-cost measurement equipment for liquid,slurry,and solids at the Industrial site. A large application of water treatment,municipal,chemical, metallurgy, and mechanical manufacturing industries.
