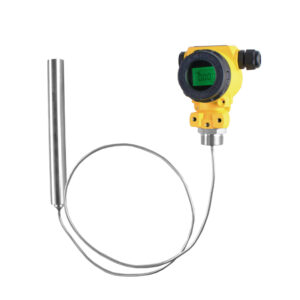

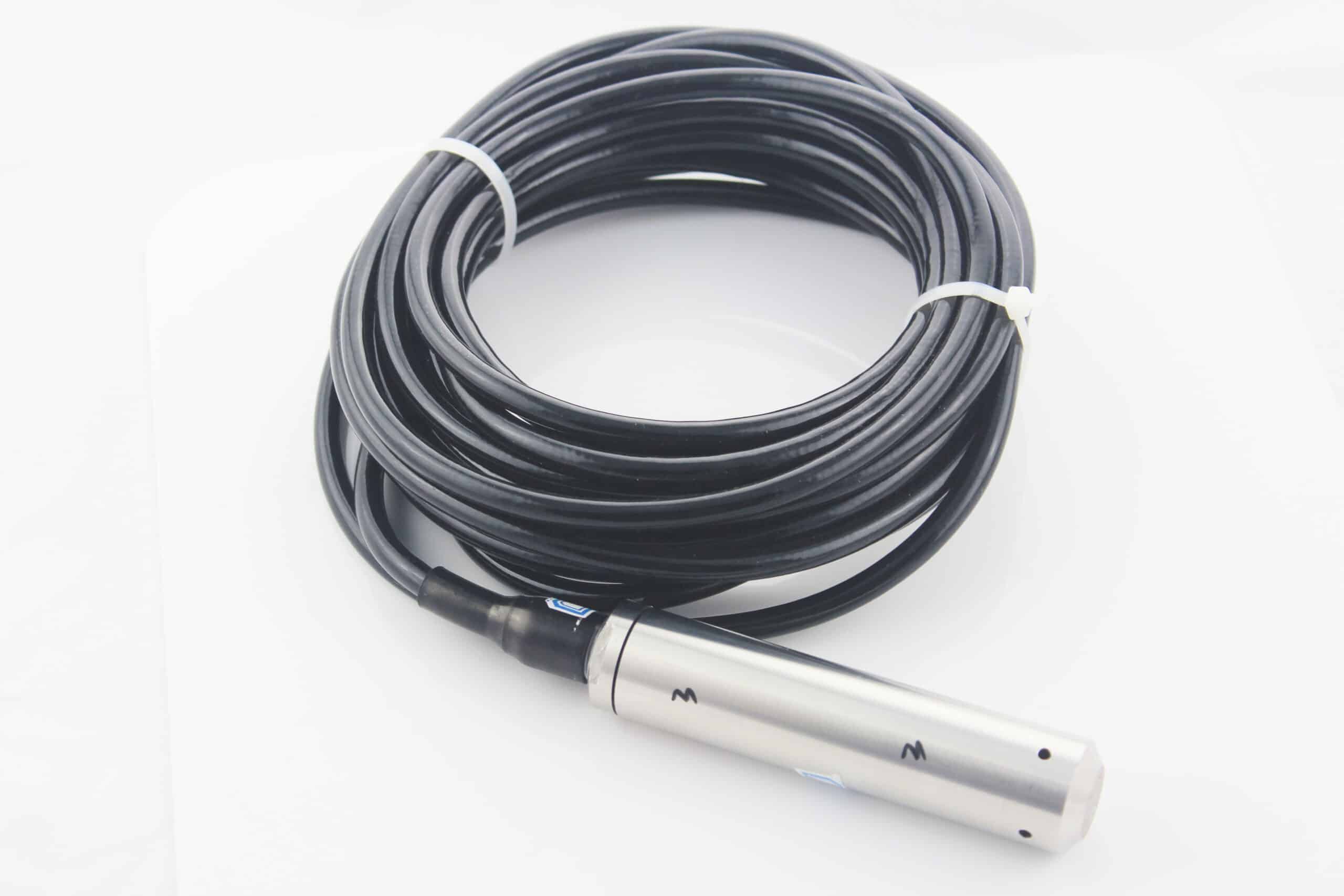

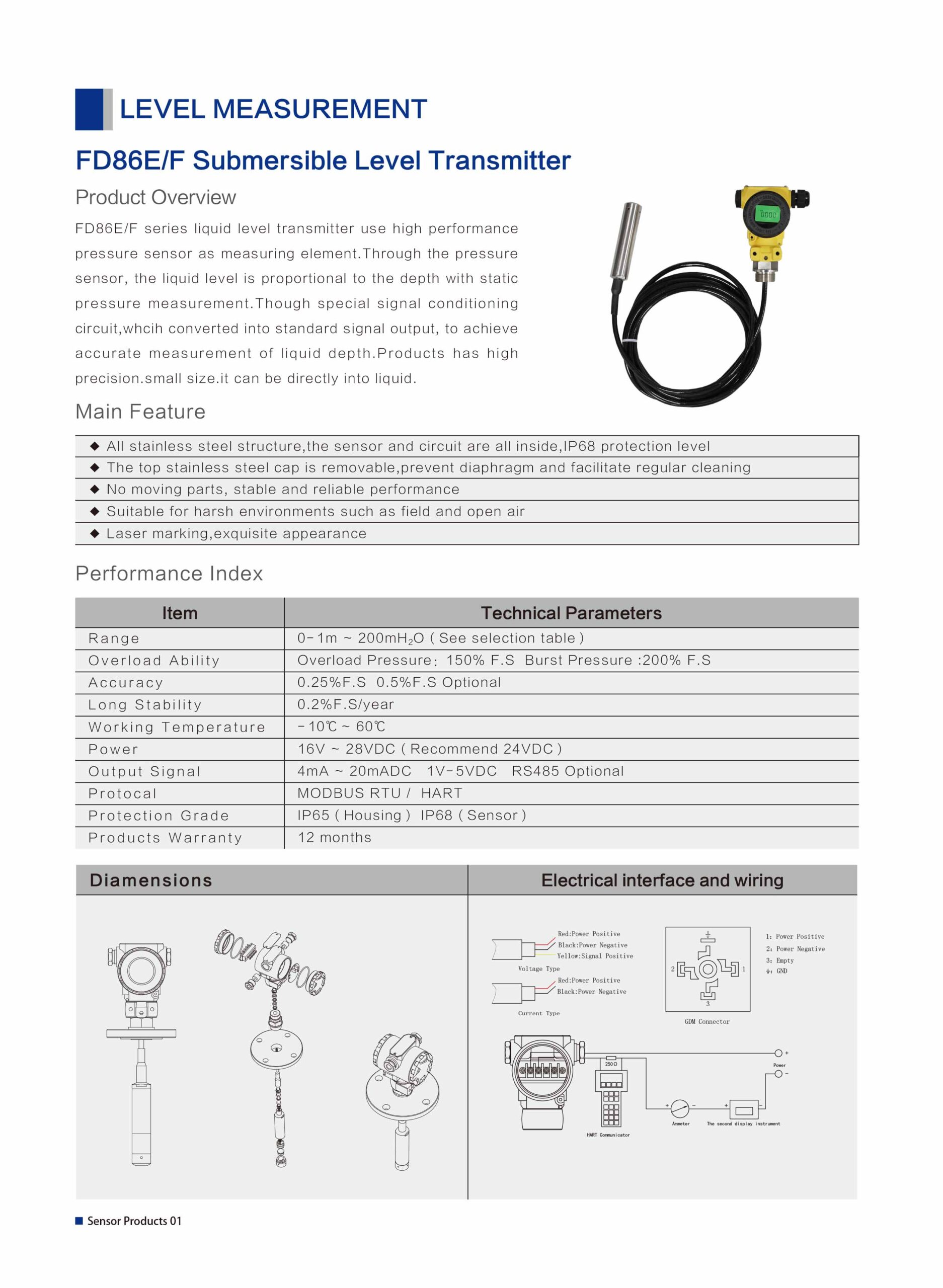

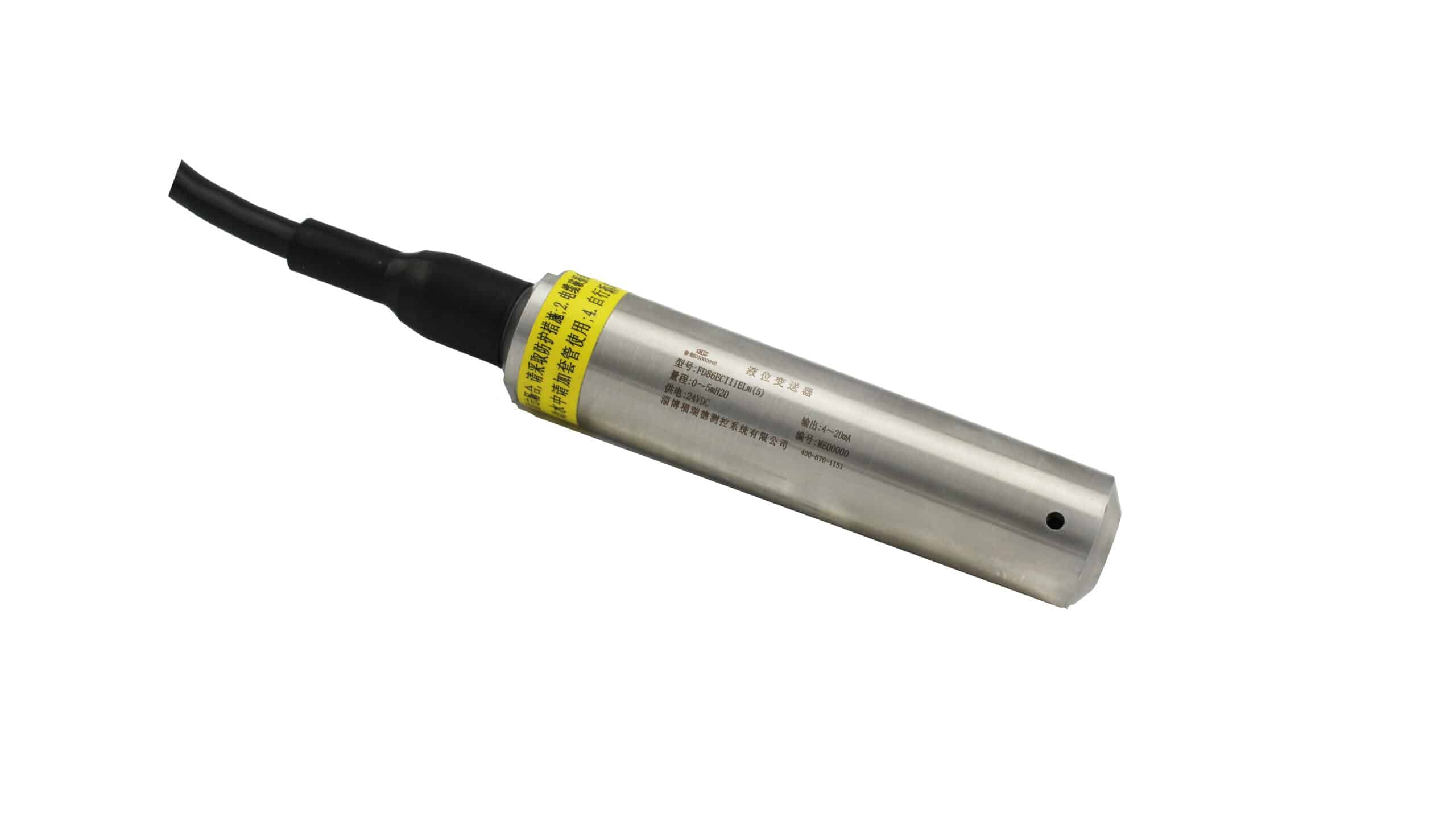

FD86E/F Submersible Level Transmitter

FD86E/F Submersible Level Transmitter

Product Feature
  • All stainless steel structure,the sensor and circuit are all inside,IP68 protection level
  • The top stainless steel cap is removable,prevent diaphragm and facilitate regular cleaning
  • No moving parts, stable and reliable performance
  • Suitable for harsh environments such as field and open air
  • Laser marking,exquisite appearance

Measuring Range0- 1m~200mH2O(See selection table)
Overload AbilityOverload Pressure:150% F.S Burst Pressure :200% F.S
Overload/Burst pressure150% F.S/200% F.S
Accuracy0.25%F.S 0.5%F.S Optional
Long Stability0.2%F.S/year
Working Temperature– 10℃~60℃
Power Supply16V~28VDC(Recommend 24VDC)
Output Signal4mA~20mADC 1V- 5VDC RS485 Optional
Communication ProtocolMODBUS RTU,HART
Electrical ConnectionM20*1.5(F),1/2NPT
Protection LevelIP65(Housing) IP68(Sensor)
Warranty period12 months

FD86E/F series liquid level transmitter use high performance pressure sensor as measuring element.Through the pressure sensor, the liquid level is proportional to the depth with static pressure measurement.Though special signal conditioning circuit,whcih converted into standard signal output, to achieve accurate measurement of liquid depth.Products has high precision.small size.it can be directly into liquid.
