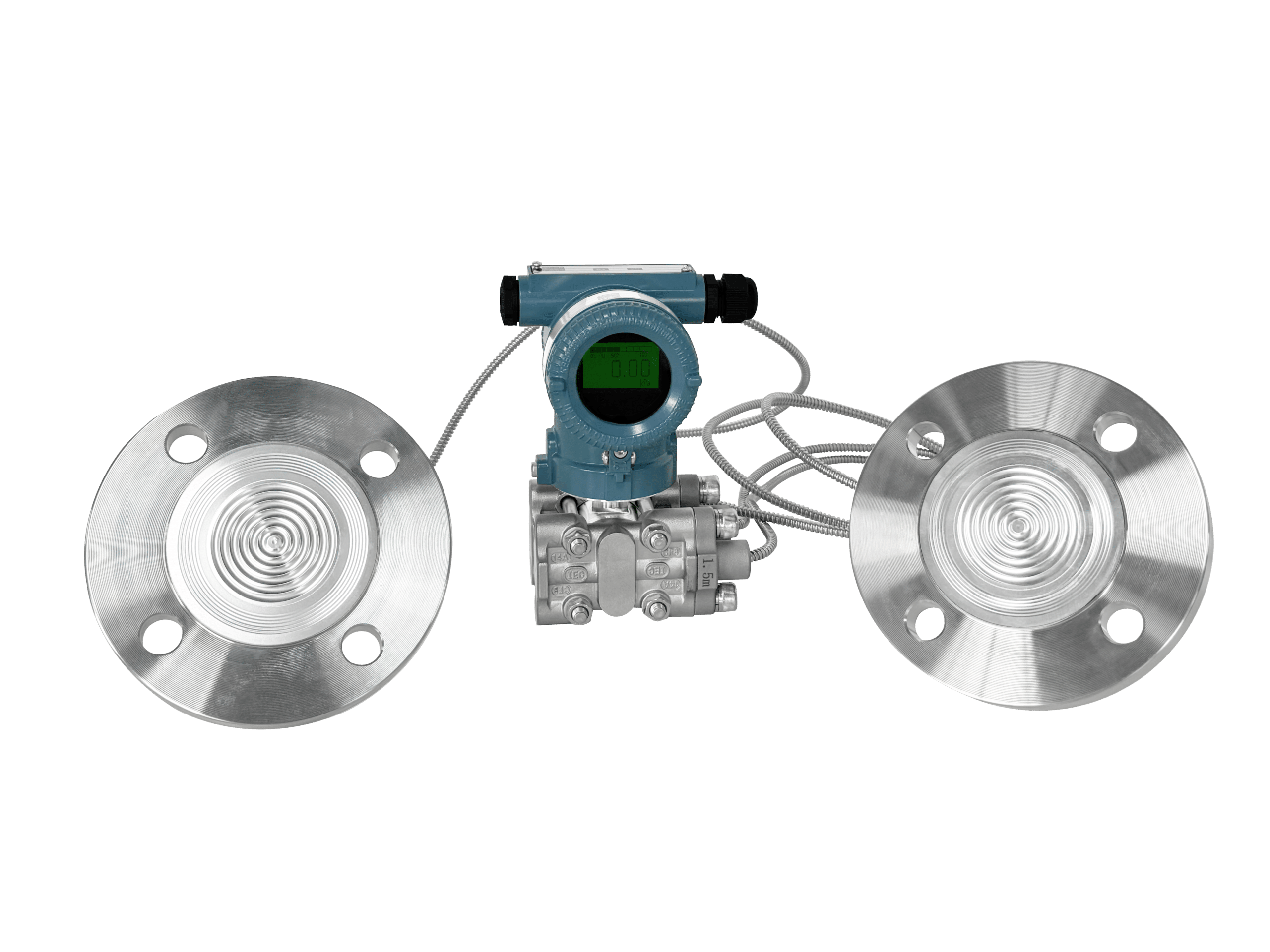

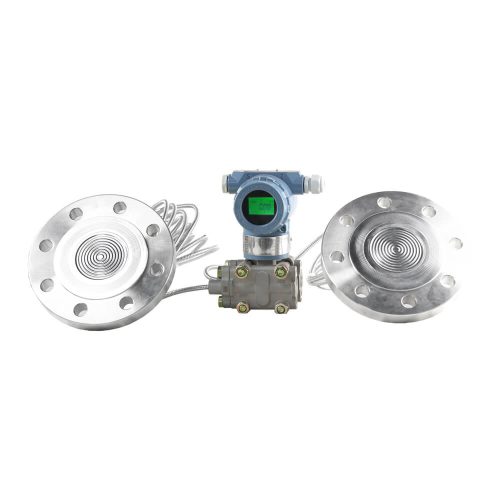

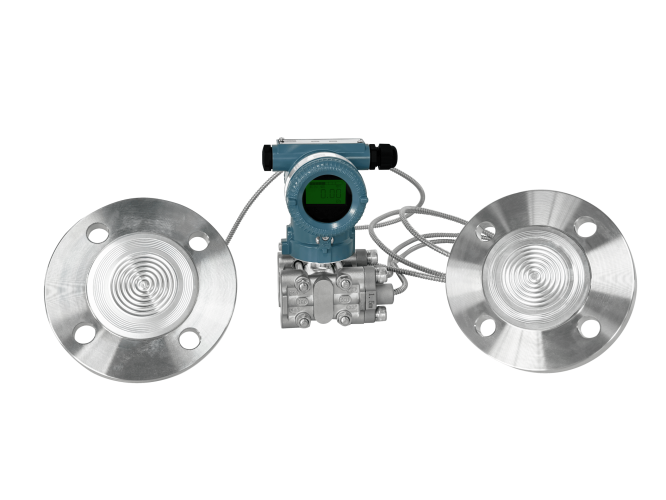

FD3051LD Double Flange Level Transmitter

FD3051LD Double Flange Level Transmitter

Product Feature
  • The central sensor used the world’s leading sensor technology
  • The sensor adopts digital compensation and non-linear correction,max adjustable range ratio of 100: 1
  • Digital circuit design,adjustment button to zero on site
  • EMC conforms to GB/T 18268.1 – 2008 standard
  • IP65 protection design, suitable for field,open air and other harsh environments
  • Meet the requirements of GB3836 standard,with explosion-proof certificate
  • All diaphragm covering the sealing,suitable for high temperature,strong corrosion and other medium

Measuring Range0-5kPa~10MPa(See model selection table)
Pressure TypeGauge;Absolute;Negative pressure(Optional)
Range ratio40:1
Accuracy0.1%F.S,0.25%F.S,0.5%F.S,
Long Stability0.2%F.S/year
Medium Temperature-40℃~200℃,0℃~300℃ Optional
Power Supply10V~30VDC(Recommended 24VDC)
Output Signal4mA~20mADC,1V-5VDC,RS485 Optional
Communication ProtocolMODBUS RTU,HART
Electrical ConnectionM20*1.5(F),1/2NPT Cable entry
Protection LevelIP65
Explosion ProofExd II C T6 Gb Ex ia II C T4 Gb Ex Td A21 IP66 T80℃
Warranty period12 months

FD3051LD Remote Flange Level Transmitter are a high -precision,high stability,multi-parameter pressure/liquid level measurement,with Hart protocol. This transmitter is welded capillary remote flange and inner silicon oil to avoid direct contact with the membrane film. The flange diaphragm can be selected according to the medium. It is suitable for liquid level measurement of medium such as high temperature, corrosion, suspension, viscosity, and crystallization.
