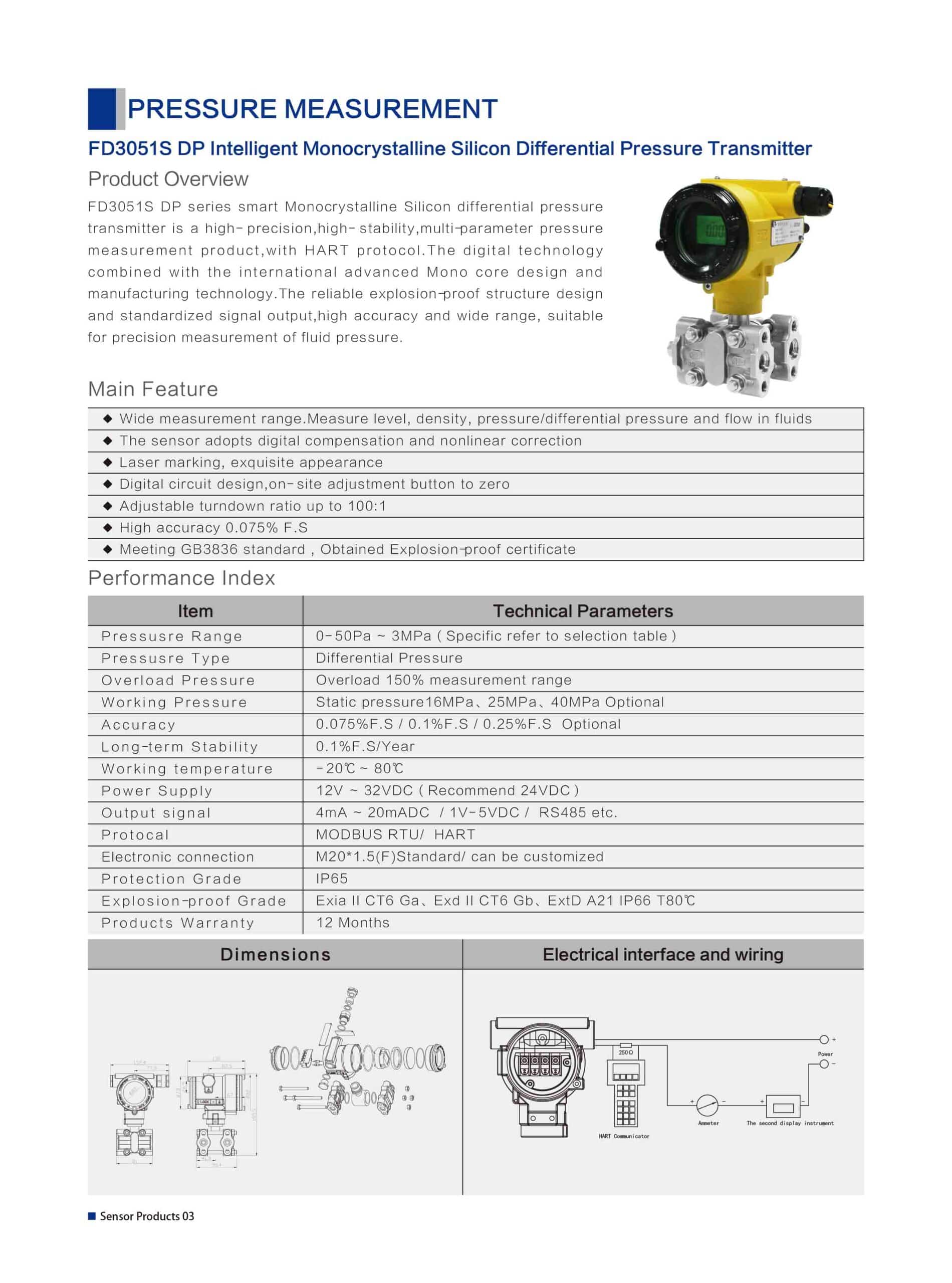

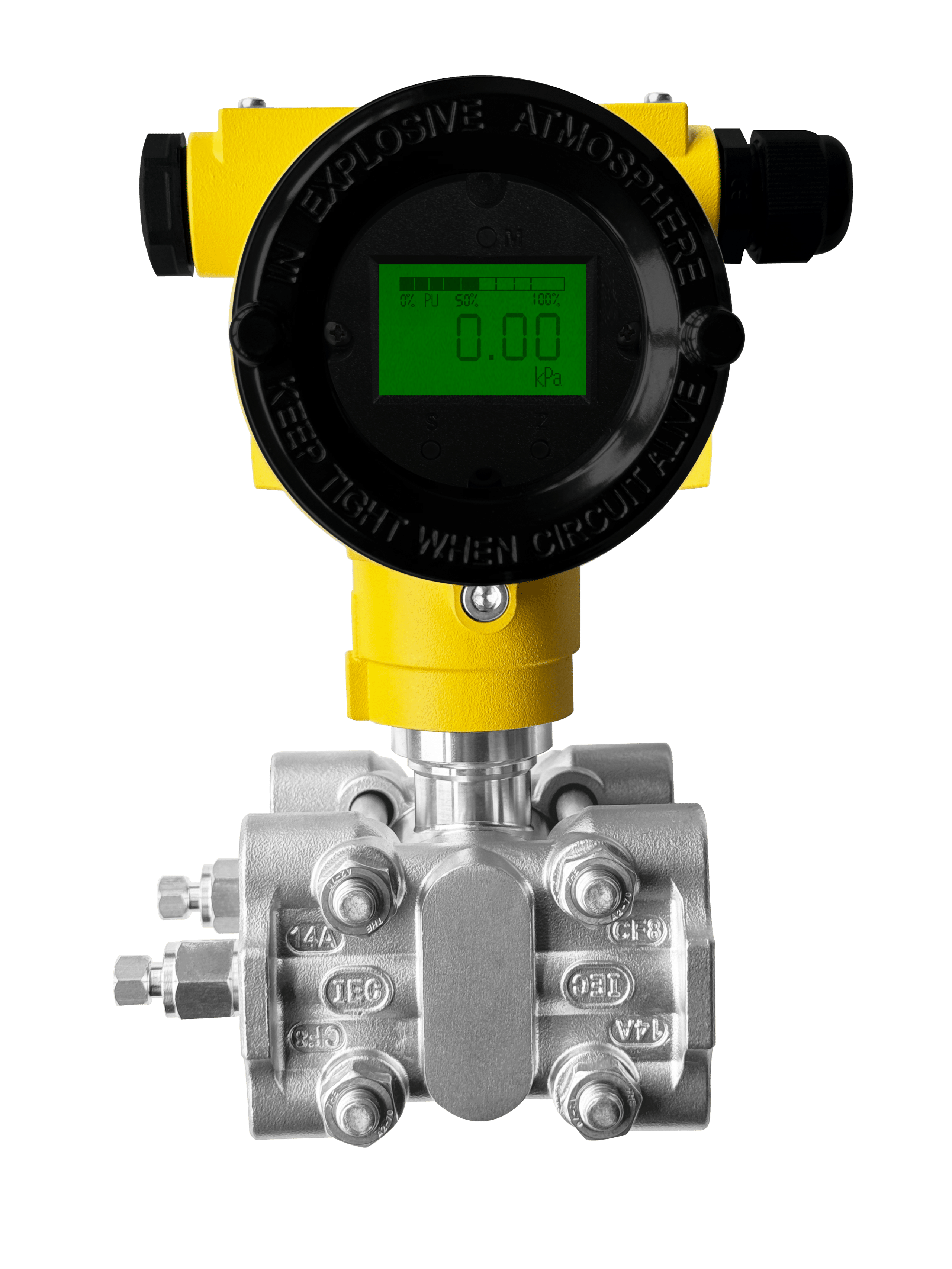

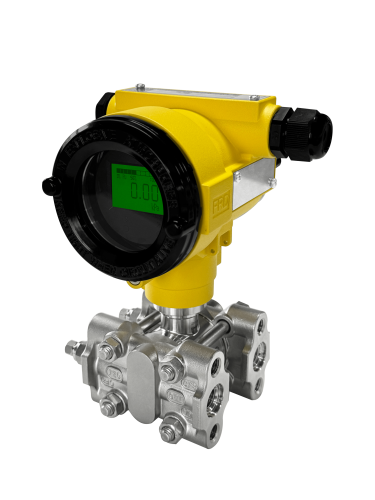

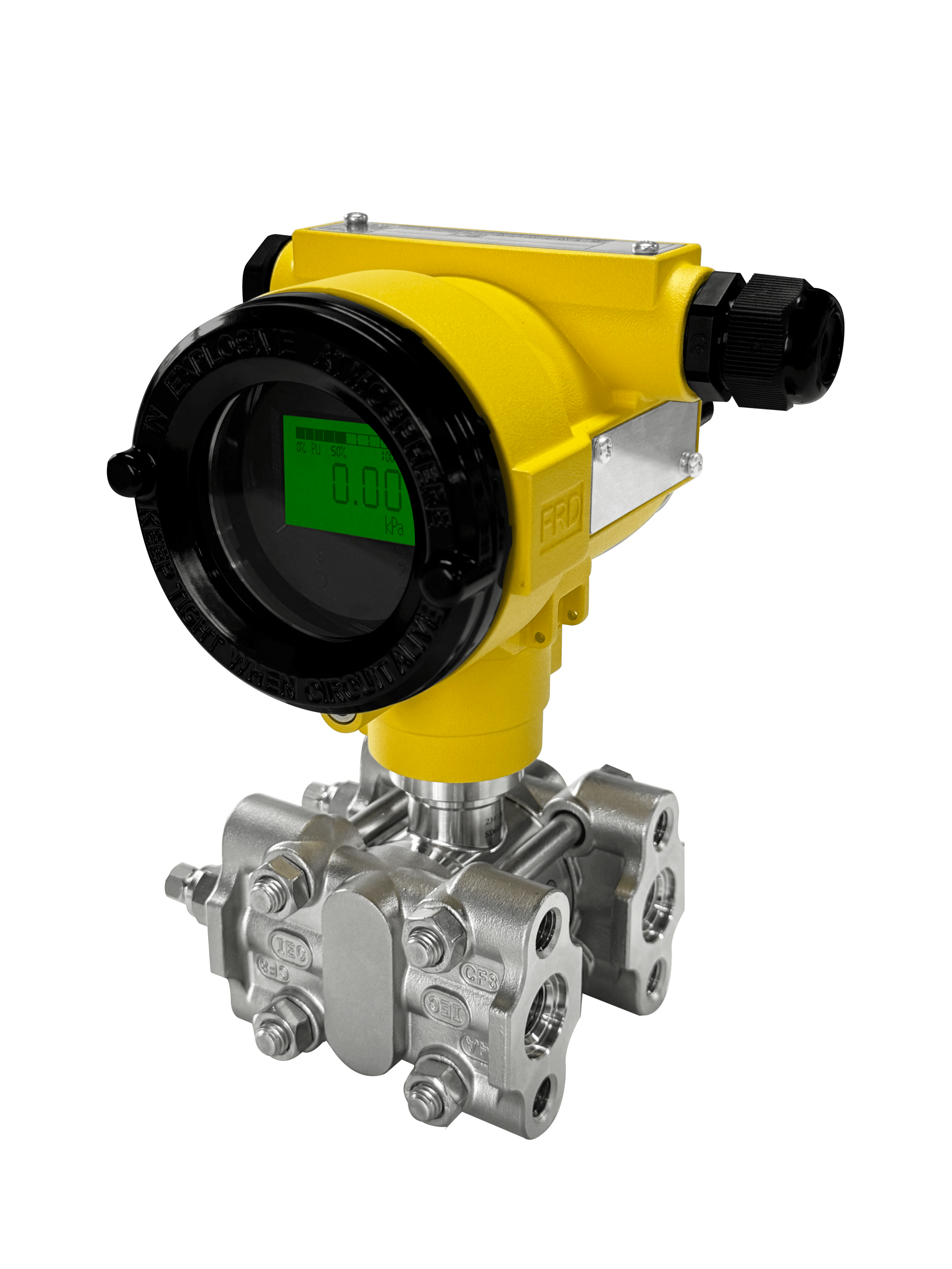

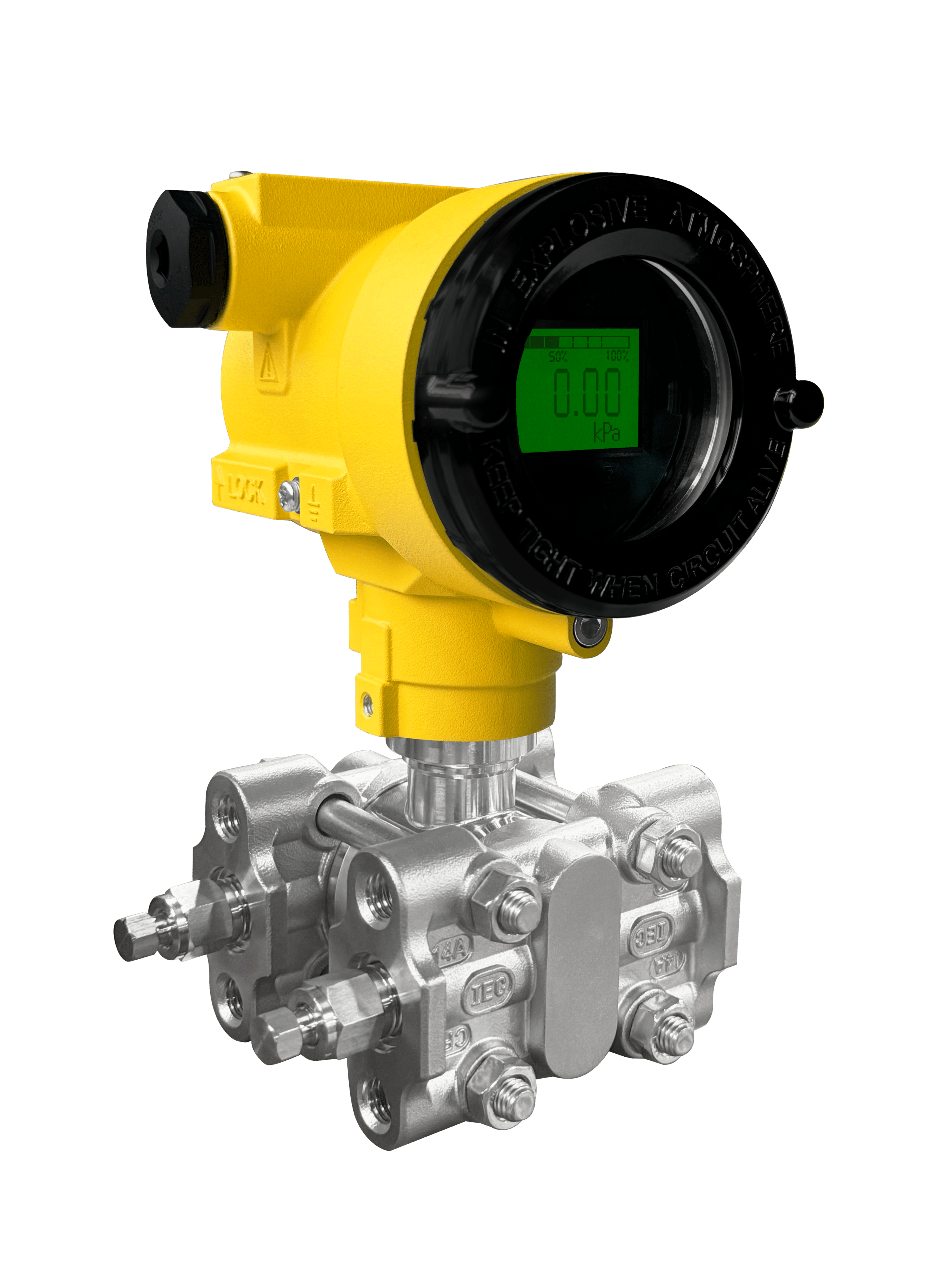

FD3051S DP Differential Pressure Transmitter

FD3051S DP Differential Pressure Transmitter

Product Feature
  • Wide measuring range,measure level, density, pressure/differential pressure and flow in fluids
  • The sensor adopts digital compensation and nonlinear correction
  • IP65 protection design,suitable for field,open air and other harsh environments
  • Laser marking nameplate,the appearance is exquisite and meticulous
  • Meet the requirements of GB3836 standard and with explosion-proof certificate.
  • Digital circuit design,on-site button key reset
  • Adjustable turndown ratio up to 100:1
  • Max accuracy can be 0.075%F.S

Measuring Range0-50Pa~3MPa(See model selection table)
Pressure TypeDifferential Pressure
Single overload150% the working pressure
Single overload150% the working pressure
Working PressureStatic pressure 16MPa, 25MPa, 40MPa optional
Accuracy0.075%F.S 0.1%F.S 0.25%F.S
Long Stability0.1%F.S/year
Medium Temperature-20℃~80℃
Power Supply12V~32VDC(Recommended 24VDC)
Output Signal4mA~20mADC,1V-5VDC,RS485 Optional
Communication ProtocolMODBUS RTU,HART
Electrical ConnectionM20*1.5(F),1/2NPT Cable entry
Protection LevelIP65
Explosion ProofExd II C T6 Gb Ex ia II C T4 Gb Ex Td A21 IP66 T80℃
Warranty period12 months

FD3051S DP is suitable to measure liquid,gas,or steam flow as well as liquid level, density and pressure.FD3051S outputs a 4~20 mADC signal corresponding to the measured differential pressure.Its highly accurate and stable sensor can also measure the static pressure which can be shown on integral indicator or remotely monitored via HART communications. Key features include quick response, remote set-up using communications,self-diagnostics and optional status output for pressure high/low alarm.

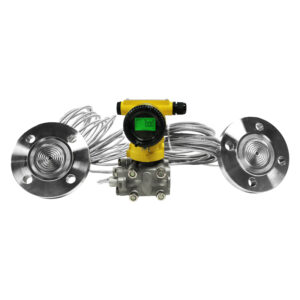

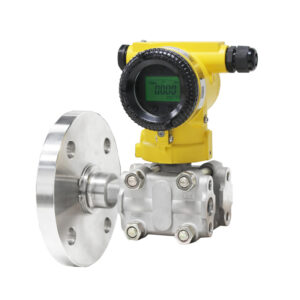

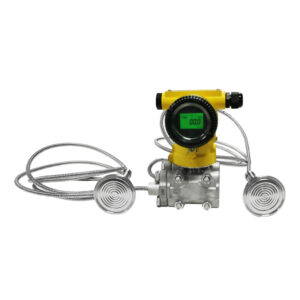

    Related Products
