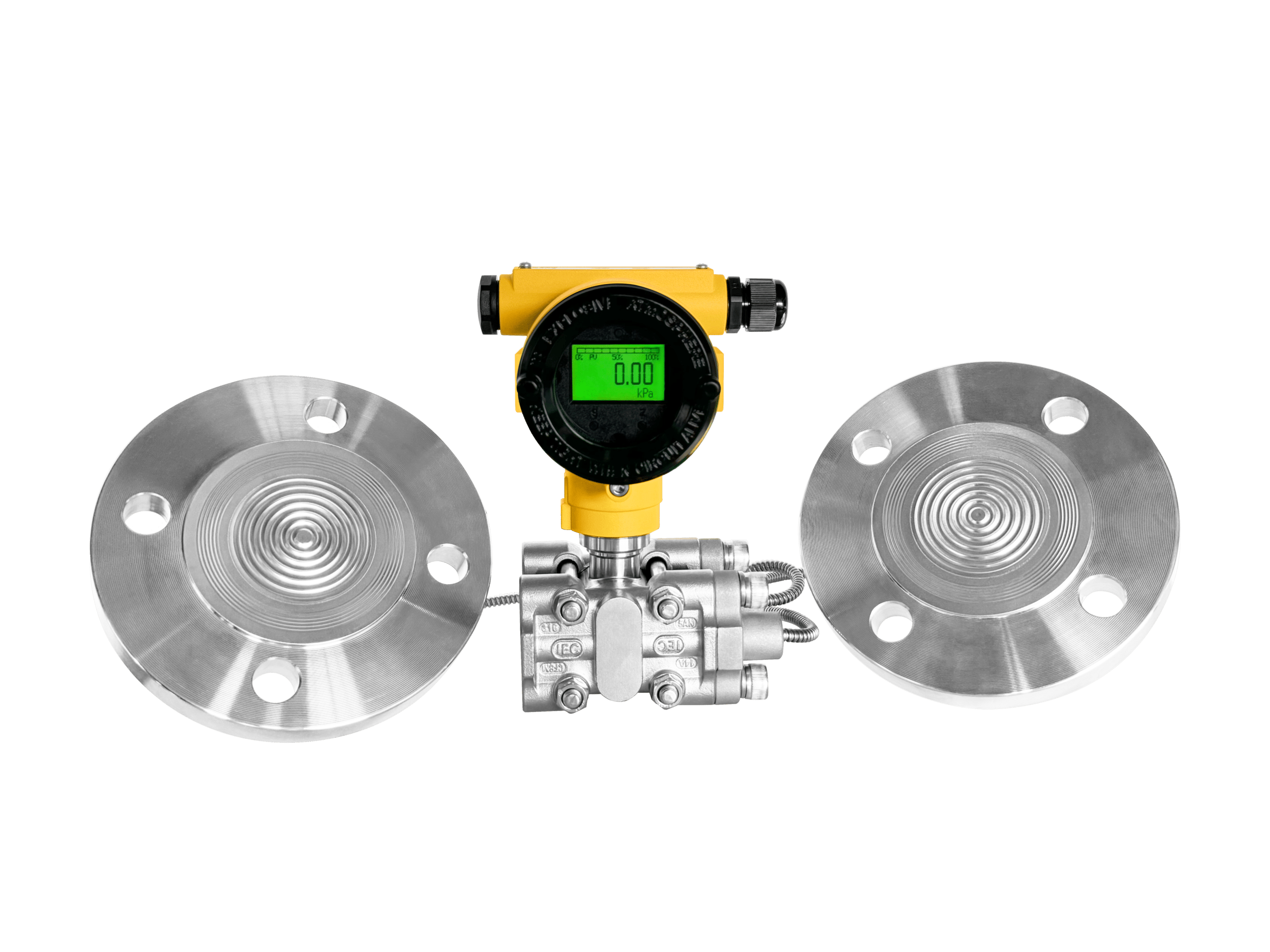

FD3051SLD双远传

FD3051S LD Differential Pressure Remote Seal Transmitter

Product Feature
  • Wide measuring range,measure level, density, pressure/differential pressure and flow in fluids
  • The sensor adopts digital compensation and nonlinear correction
  • IP65 protection design,suitable for field,open air and other harsh environments
  • Laser marking nameplate,the appearance is exquisite and meticulous
  • Meet the requirements of GB3836 standard and with explosion-proof certificate.
  • Digital circuit design,on-site button key reset
  • Adjustable turndown ratio up to 100:1
  • Max accuracy can be 0.075%F.S

Inquiry of Product
PDF Download
  • Share:
  • Follow Us:
Facebook Twitter Linkedin Youtube Weixin Whatsapp

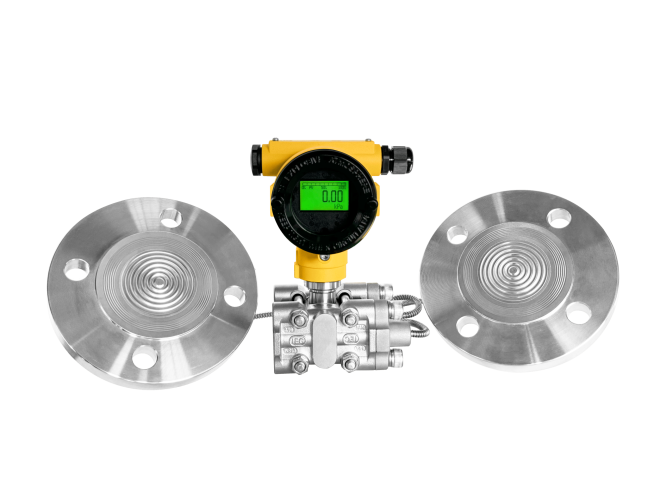

FD3051SLD双远传

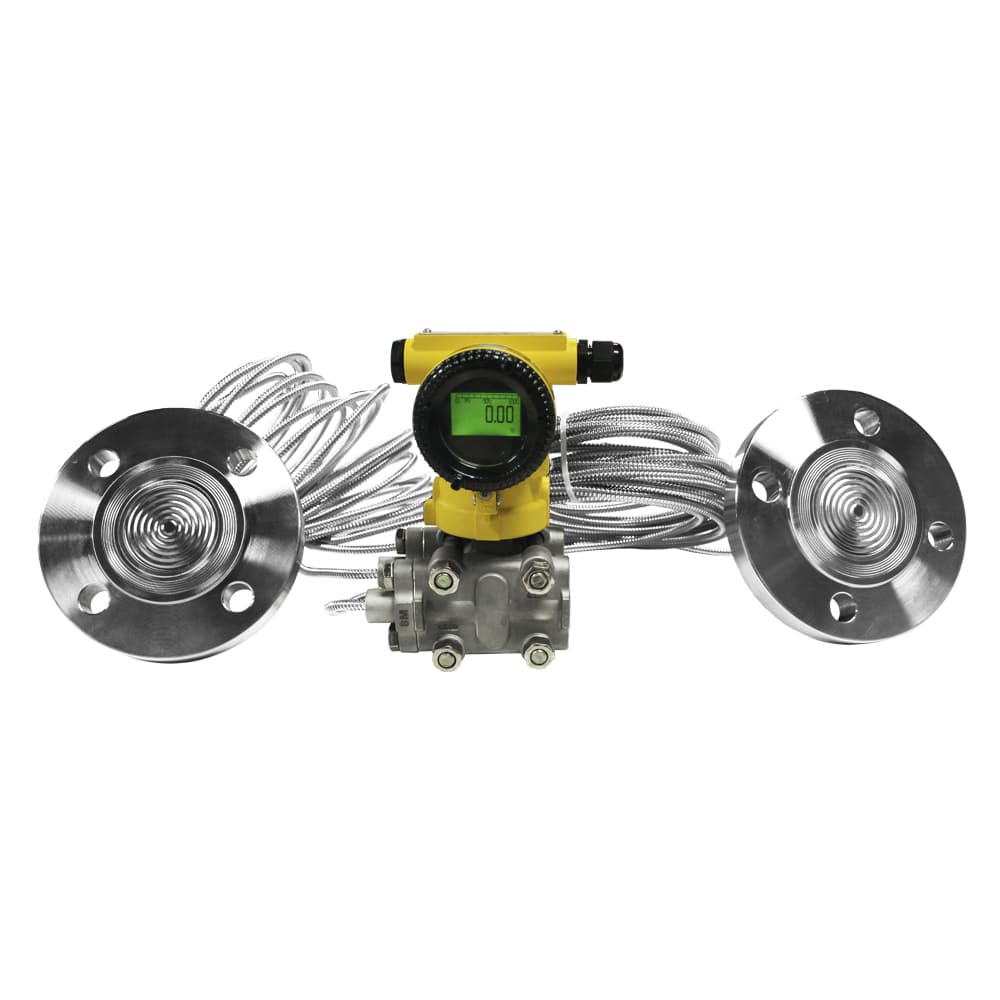

FD3051S LD

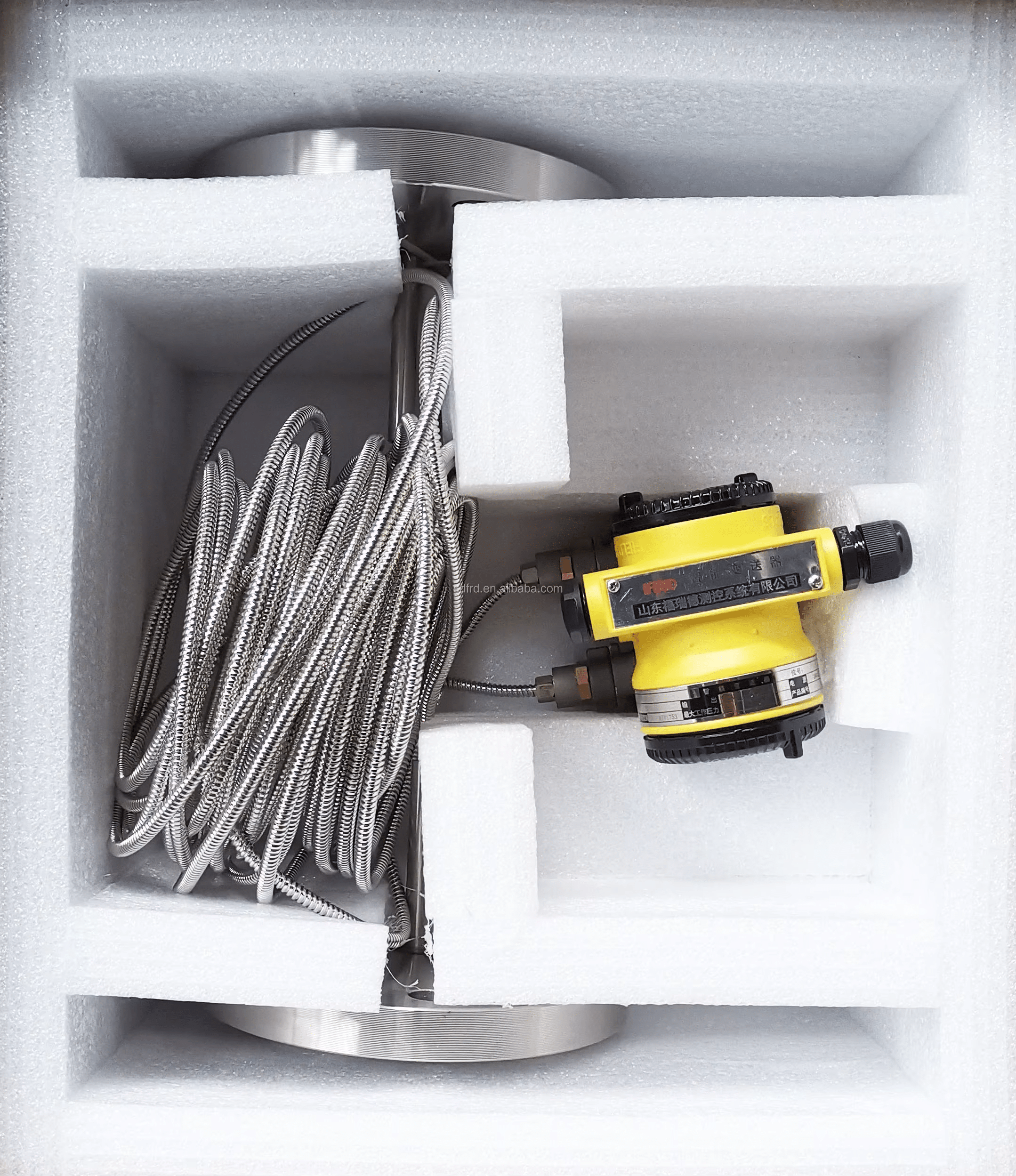

3051SLD
Measuring Range0-5kPa～10MPa（See model selection table）
Pressure TypeGauge;Absolute;Negative pressure(Optional)
Range ratio40:1
Accuracy0.1%F.S,0.25%F.S,0.5%F.S,
Long Stability0.2%F.S/year
Medium Temperature-40℃～200℃,0℃～300℃ Optional
Power Supply10V～30VDC（Recommended 24VDC）
Output Signal4mA～20mADC,1V-5VDC,RS485 Optional
Communication ProtocolMODBUS RTU,HART
Electrical ConnectionM20*1.5(F),1/2NPT Cable entry
Protection LevelIP65
Explosion ProofExd II C T6 Gb Ex ia II C T4 Gb Ex Td A21 IP66 T80℃
Warranty period12 months

The structure of FD3051S LD differential pressure remote transmission transmitter is composed of FD3051S series differential pressure transmitter and welded installed remote flange with capillary. The pressure acting on the side of the remote flange first passes through the diaphragm and filling liquid on the remote flange, then through the capillary tube, and finally reaches the corresponding positive and negative sides of the measurement sensor.

The remote seal differential pressure transmitter FD3051S LD is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. FD3051 LD outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm. The range Limits is 0—1kPa～2MPa, The flange’s working pressure are 1.6/4MPa,6.4MPa,10MPa,150psi,300psi or 600psi.
