| Measuring Range | 0-5kPa～10MPa（See model selection table） |
| Pressure Type | Gauge;Absolute;Negative pressure(Optional) |
| Range ratio | 40:1 |
| Accuracy | 0.1%F.S,0.25%F.S,0.5%F.S, |
| Long Stability | 0.2%F.S/year |
| Medium Temperature | -40℃～200℃,0℃～300℃ Optional |
| Power Supply | 10V～30VDC（Recommended 24VDC） |
| Output Signal | 4mA～20mADC,1V-5VDC,RS485 Optional |
| Communication Protocol | MODBUS RTU,HART |
| Electrical Connection | M20*1.5(F),1/2NPT Cable entry |
| Protection Level | IP65 |
| Explosion Proof | Exd II C T6 Gb Ex ia II C T4 Gb Ex Td A21 IP66 T80℃ |
| Warranty period | 12 months |

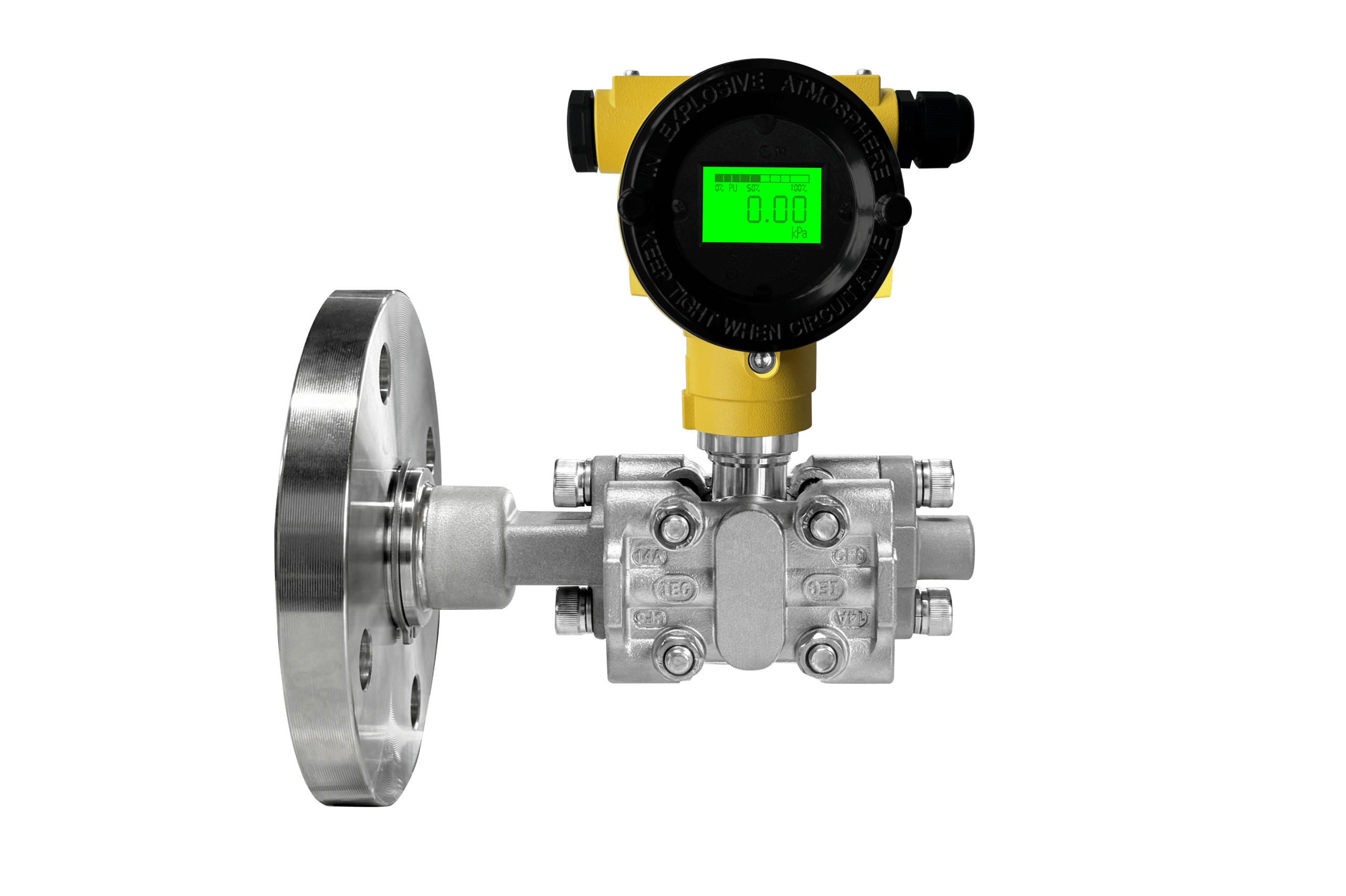

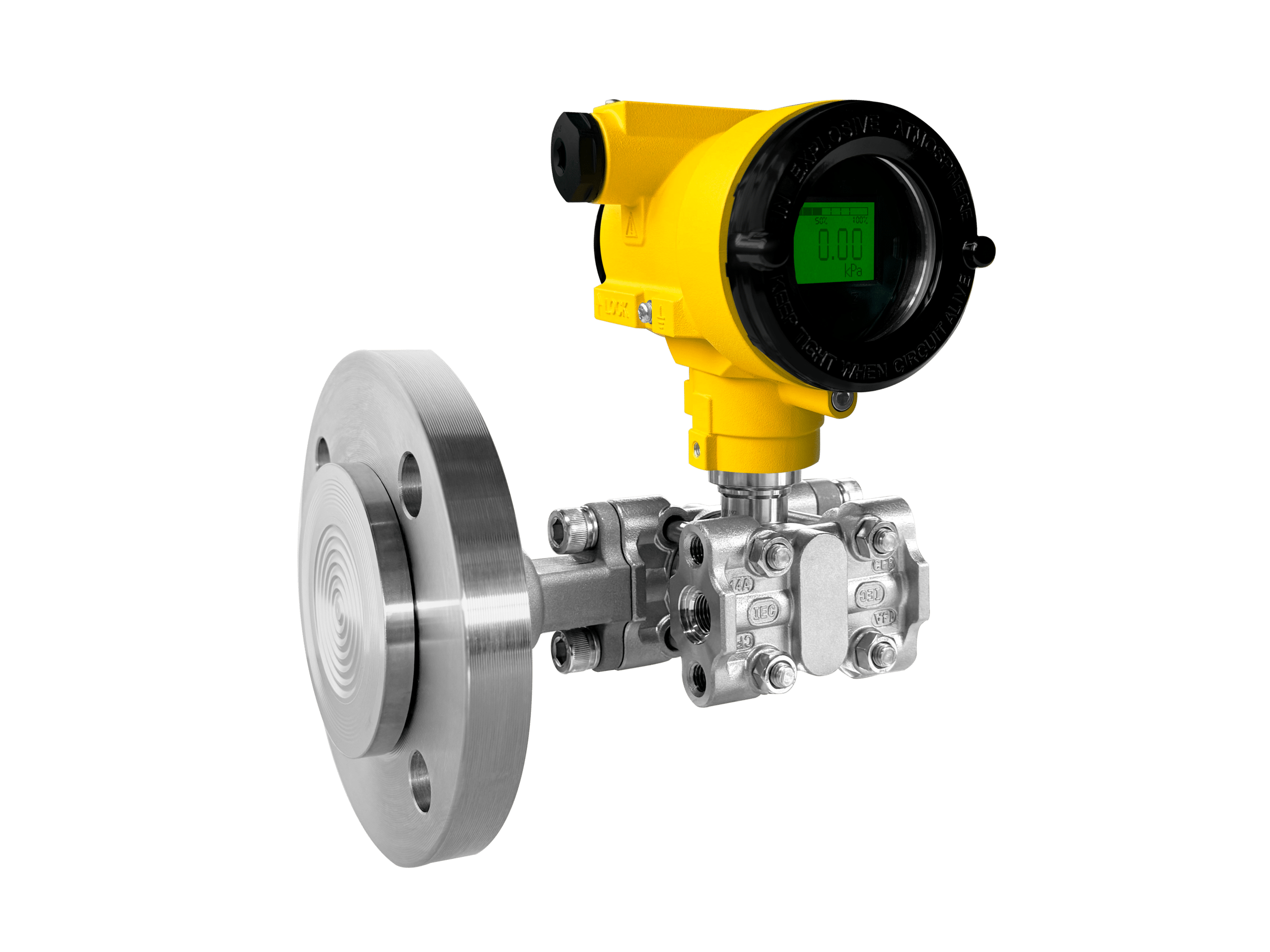

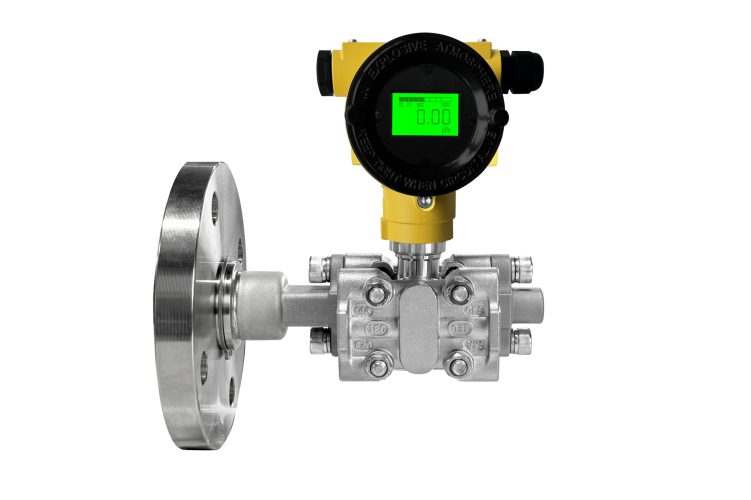

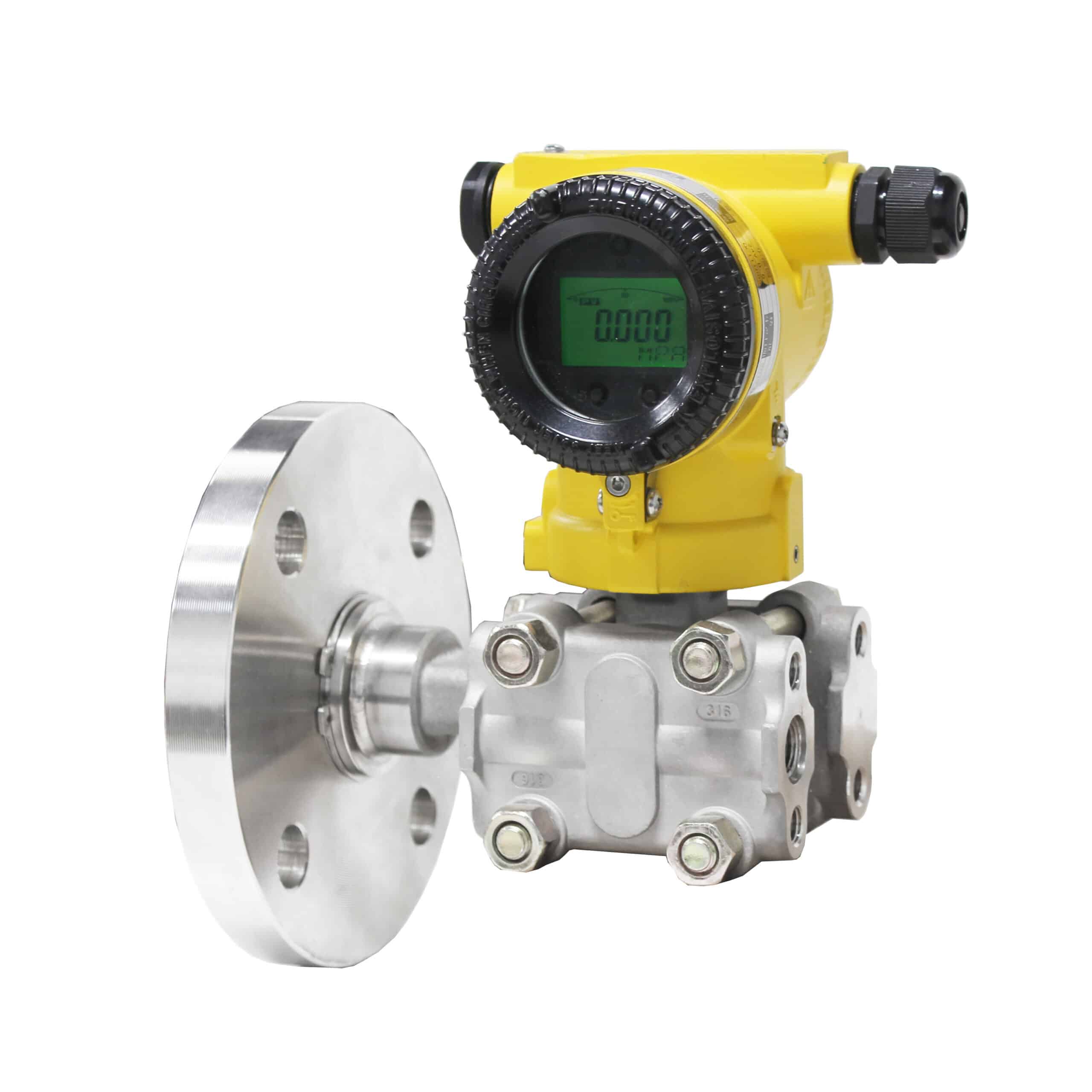

FD3051S LT differential pressure level transmitter is suitable to measure liquid, gas, or steam flow as well as liquid level,density and pressure. FD3051S LT outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.
Wide measuring range,measure level, density, pressure/differential pressure and flow in fluids The sensor adopts digital
